Sea Freight Container Data

The details on this page are of the most frequently used container sizes. If you require containers that are not listed here or specialised container equipment, please contact us.

Please Note: All dimensions are approximate only and can vary depending on container source. Also maximum weights allowable maybe less than those stated below due to handling equipment capacities at ports and maximum road/rail weights allowable in some countries. Please contact us if you require specific port or country information.

At LLoyds we can help you with all your seafreight needs

20 FOOT CONTAINER

20ft Container Data		Metres	Feet
Internal Dimensions	Length	5.89	19'4''
	Width	2.33	7'8''
	Height	2.38	7'10''
Door	Width	2.33	7'8''
Door	Height	2.28	7'6''
		Kilograms	Pounds
Weight	Tare	2229	4916
Weight	Max. Payload	21727	47999
		Cubic Metres	Cubic Feet
Capacity		33.18	1172

No matter what your ocean transport needs are Lloyds can help

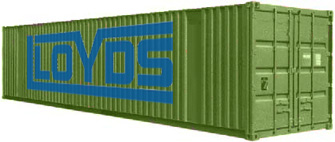

40 FOOT CONTAINER

40ft Container Data		Metres	Feet
Internal Dimensions	Length	12.01	39'5"
	Width	2.33	7'8''
	Height	2.38	7'10''
Door	Width	2.33	7'8''
Door	Height	2.28	7'6''
		Kilograms	Pounds
Weight	Tare	3701	8160
Weight	Max. Payload	26780	59040
		Cubic Metres	Cubic Feet
Capacity		67.7	2390

Need help with container handling - contact Lloyds

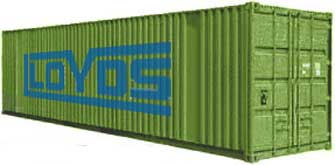

40 FOOT HIGH CUBE CONTAINER

40ft High Cube Data		Metres	Feet
Internal Dimensions	Length	12.01	39'5''
	Width	2.33	7'8''
	Height	2.69	8'10''
Door	Width	2.33	7'8''
Door	Height	2.56	8'5''
		Kilograms	Pounds
Weight	Tare	3968	8750
Weight	Max. Payload	26512	58450
		Cubic Metres	Cubic Feet
Capacity		76.28	2694

20 FOOT BOLSTER (Platform)

20ft Bolster Data		Metres	Feet
Internal Dimensions	Length	6.07	19'11''
	Width	2.43	8'0''
	Max Height	2.23	7'4"
Weight		Kilograms	Pounds
	Tare	2749	6061
	Max. Payload	23993	66397

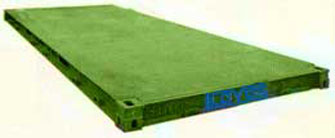

40 FOOT BOLSTER (Platform)

40ft Bolster Data		Metres	Feet
Internal Dimensions	Length	12.19	40'0''
	Width	2.43	8'0''
	Max. Height	1.95	6'5"
Weight		Kilograms	Pounds
	Tare	5798	12783
	Max. Payload	30117	66397

20 FOOT FLATRACK

20ft Flatrack Data		Metres	Feet
Internal Dimensions	Length	5.61	18'5''
	Width	2.20	7'3''
	Height	2.23	7'4''
Weight		Kilograms	Pounds
	Tare	2530	5578
	Max. Payload	21469	47333

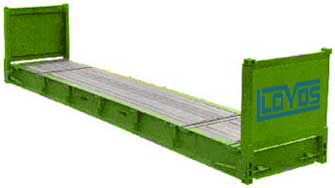

40 FOOT FLATRACK

40ft Flatrack Data		Metres	Feet
Internal Dimensions	Length	12.06	39'7''
	Width	2.08	6'10''
	Height	1.95	6'5"
Weight		Kilograms	Pounds
	Tare	5479	12081
	Max. Payload	38918	85800

20 FOOT OPEN TOP CONTAINER

20ft Open Top Data		Metres	Feet
Internal Dimensions	Length	5.89	19'4''
	Width	2.31	7'7''
	Height	2.33	7'8''
Door	Width	2.28	7'6''
Door	Height	2.18	7'2''
Weight		Kilograms	Pounds
	Tare	2394	5280
	Max. Payload	21600	47620
		Cubic Metres	Cubic Feet
Capacity		32.16	1136

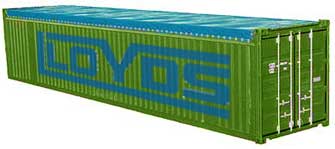

40 FOOT OPEN TOP CONTAINER

40ft Open Top Data		Metres	Feet
Internal Dimensions	Length	12.01	39'5"
	Width	2.33	7'8"
	Height	2.33	7.8"
Door	Width	2.33	7'8"
Door	Height	2.26	7'5"
Weight		Kilograms	Pounds
	Tare	3850	8490
	Max. Payload	26630	58710
		Cubic Metres	Cubic Feet
Capacity		66.54	2350

20 FOOT REFRIGERATED CONTAINER
(Reefer)

20ft Refrigerated Data		Metres	Feet
Internal Dimensions	Length	5.38	17"8"
	Width	2.26	7'5"
	Height	2.26	7"5"
Door	Width	2.26	7'5"
Door	Height	2.20	7'3"
Weight		Kilograms	Pounds
	Tare	3193	7040
	Max. Payload	20756	45760
		Cubic Metres	Cubic Feet
Capacity		28.31	1000

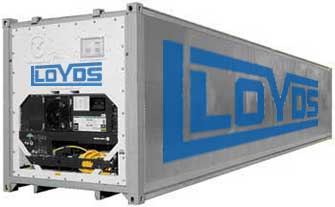

40 FOOT REFRIGERATED CONTAINER
(Reefer)

40ft Refrigerated Data		Metres	Feet
Internal Dimensions	Length	11.48	37'8"
	Width	2.26	7'5"
	Height	2.18	7'2"
Door Opening	Width	2.26	7'5"
Door Opening	Height	2.13	7'0"
Weight		Kilograms	Pounds
	Tare	4889	10780
	Max. Payload	25526	56276
		Cubic Metres	Cubic Feet
Capacity		57.76	2040
